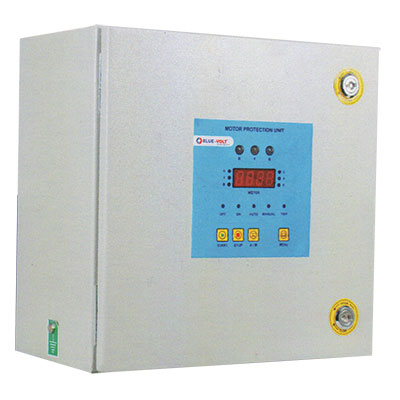

Saferun starters
We manufacture reliable and flexible Safe Run starters for industrial automations projects.
Objectives of Safe Run starters are:
- Process a large amount of data in a sort time
- Compact and light weight
- Self contained electronic apparatus for a wide range of industrial automation
- Easy to access manually as well as through BMS application
- Increased reliability
- Faster response and resolution time
- Convenience to troubleshoot
Mounting arrangement:
- Wall/Floor mounting cabinet with standard pre-defined sizes
- Enclosure comes with IP54 and IP55
Settable parameters:
- 1. Voltage protection
- Over voltage trip
- Under voltage trip
- Unbalanced voltage trip
- Single phase protection
-
2. Current protection
- Over load trip
- Under load trip
- Unbalanced load trip
- Single phase Ct bypassed trip
- 3. Di Commend
- 4. Auto reset
-
5. Auto/Manual function check
- Auto on/off
- Manual on/off
- Feedback voltage status check
- Manual bypass count check
Unit features:
- 1X4 seven segment LED display
- The unit is password protected
- Nine protection function (SPP, PR, UBL, OL, UL, UBU, OV, UU, FB)
- Front panel LED indication for Red, Yellow and Blue phases
- Front panel LED indication for On, Off, Auto/Manual and setting mode
- Contactor for on/off
- For BMS purpose exclusive contactors for On/Off, Auto/Manual and Trip status
- Bypass switch for failsafe operation
- If trip occurs, then buzzer gets On until the fault gets accepted manually
- Auxiliary supply is 230V AC @ 50 Hz
Advantages over Normal straters:
- Simple and compact
- All the parameters can be viewed over display
- Faults can be identified exactly
- Cost effective
- More reliable and protective
- Easy handling
- Reduce complexity of cabling for parameters
- Easy monitoring of the system
- Easy to integrate with RS Modbus
